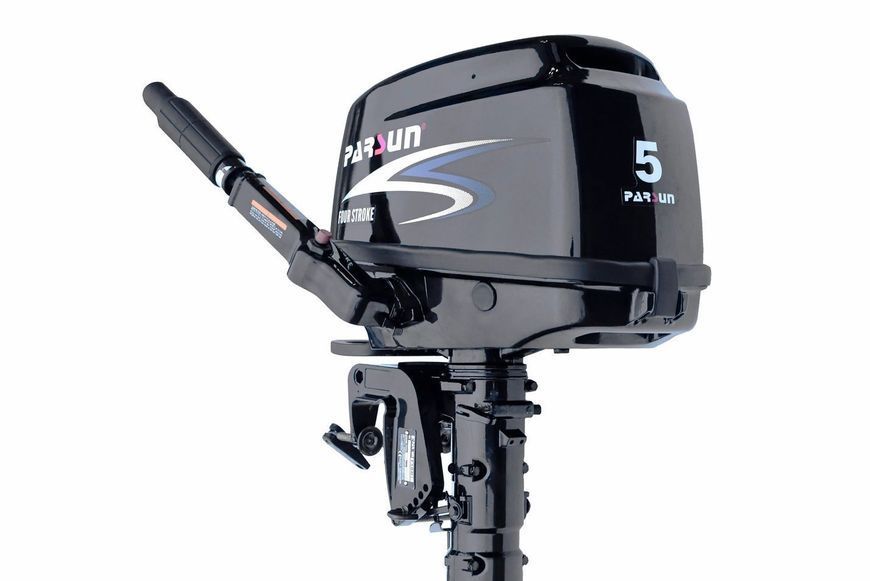

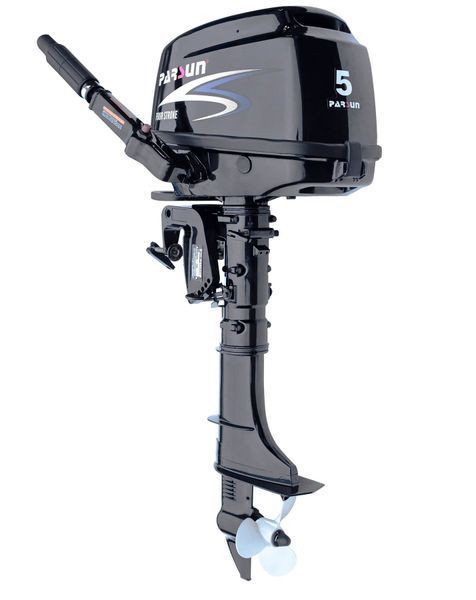

The Parsun F5BML outboard motor is designed for inflatable boats that require an economical and easy-to-use engine. Due to its design and technical characteristics, it is suitable for various conditions of use, including fishing, walking and hunting.
Main characteristics
It is equipped with a four-stroke single-cylinder engine with a displacement of 112 cm, developing a power of 5 hp (3.6 kW). The piston diameter and stroke are 59×41 mm. The TCI ignition system provides reliable starting and stable operation in the range of 4000-5000 rpm. Cooling is carried out by a water system with a thermostat, which prevents overheating during prolonged operation. Fuel is supplied through a carburetor, and the built-in 1.3-liter fuel tank allows you to connect an external tank to increase the range. The fuel consumption of a gasoline outboard engine is about 1.5 nd.;2.0 l/h, which makes it an economical option for long trips.
Management and operation
The boat motor is controlled by a tiller, which provides ease and convenience of use. The start is carried out manually, which makes it independent of the battery. The exhaust system through the propeller hub reduces noise and vibration, ensuring comfort during operation. The deadwood lifting mechanism is manual, with the ability to operate in shallow water mode, which expands the scope of application. The gears include forward, neutral and reverse, providing maneuverability and control over the vessel.
Design and features

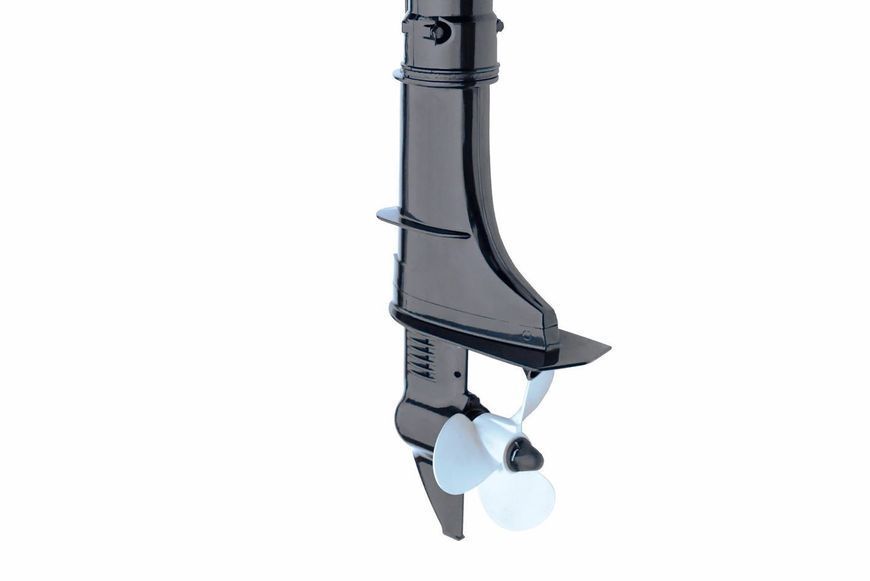

The Parsun outboard motor has a long deadwood length of 508 mm, which makes it compatible, which makes it compatible. The fastening is carried out using a transom clamp, ensuring reliable fixation. The propeller is made of aluminum, the standard size is 3×7½×7''. The weight is 24.5 kg, which makes it quite easy to install and transport. The gear ratio is 2.08:1, which provides optimal traction and efficiency.
Operational benefits
F5BML is characterized by stable operation, economical fuel consumption and long service life. It is easy to maintain and resistant to corrosion, which is especially important when operating in seawater. Suitable for fishermen, tourists and everyone who uses small vessels for active recreation. Thanks to the well-thought-out design and digital systems, starting is reliable even after a long downtime.
Everything that comes with the product
- Parsun F5BML motor
- Security check
- Emergency start cable
- Toolkit
- Operating instructions
- Cardboard packaging
