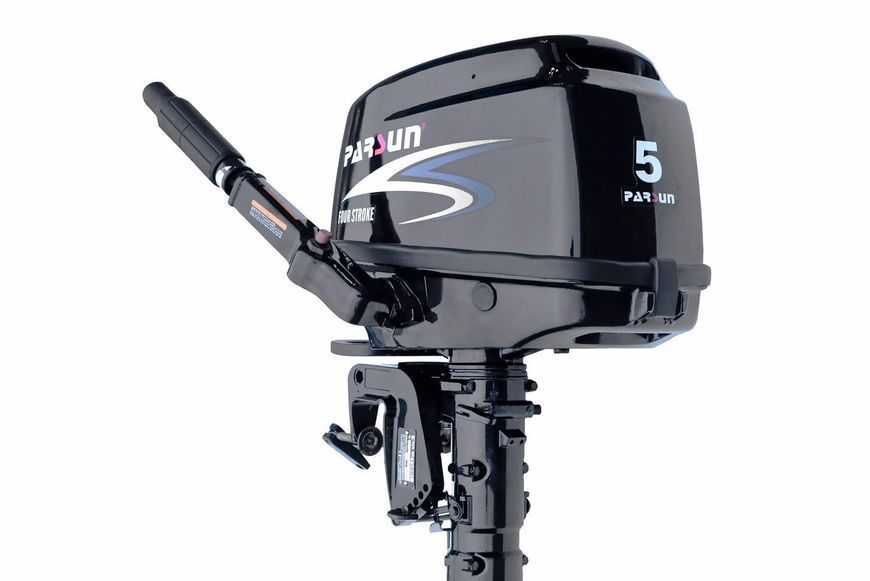

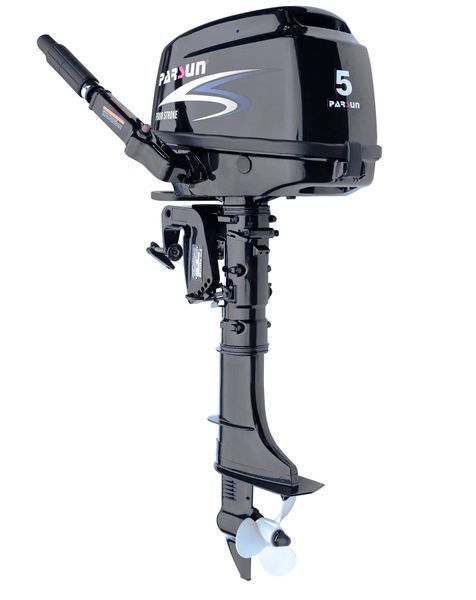

Parsun F5BMS is a compact motor that is ideal for small vessels. It is economical, easy to maintain and easy to operate. The boat engine copes well with the tasks of fishing, walking and active recreation on the water.

Parameters

Equipped with a four-stroke single-cylinder engine with a displacement of 112 cm and a power of 5 hp. The piston diameter and stroke are 59×41 mm. The TCI ignition system provides a confident and stable start. The engine speed range is 4000 – 5000 rpm. Water cooling with a thermostat, which prevents overheating during prolonged operation. Fuel supply through a carburetor, the built-in tank has a volume of 1.3 liters, with the possibility of connecting an additional external tank. Average fuel consumption is about 1.6 l/h.

Management and operation

Control is implemented using a convenient tiller. The Parsun outboard motor is started manually, which does not require a battery. The exhaust system is led through the propeller hub, which reduces noise and vibration. The manual deadwood lifting mechanism allows the device to be used in shallow water areas. The presence of "forward", "neutral" and "reverse" gears ensures ease of maneuvering.

Design and features

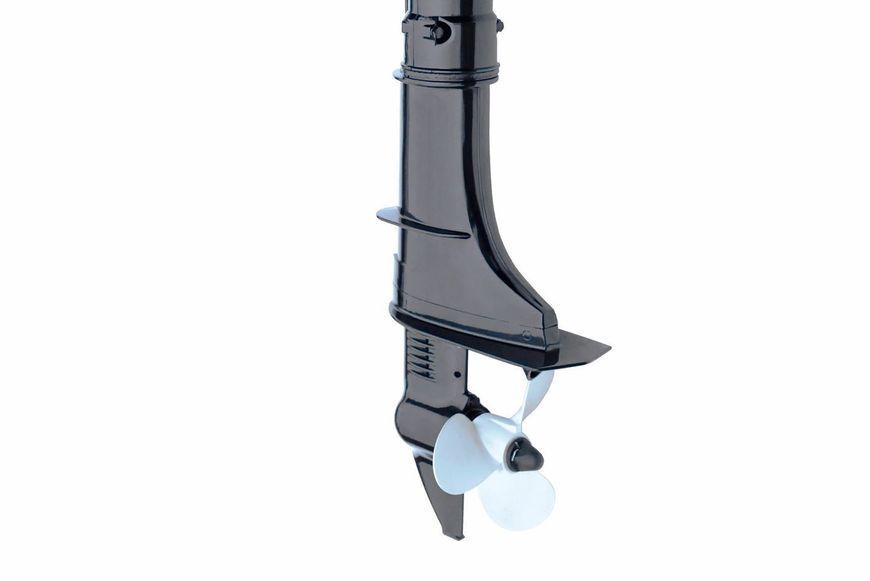

The 381 mm long deadwood is suitable for a boat with a short transom. The mount is a standard transom clamp, which provides a strong fixation. The kit includes an aluminum three-blade propeller measuring 3×7×7''. The engine weighs 24 kg, which simplifies its transportation and installation. The gear ratio is 2.08:1, optimizing traction and efficiency.

Operational benefits

The gasoline outboard engine is characterized by stable operation, low fuel consumption and durability. It is easy to maintain and resistant to corrosion, which is important when operating in seawater. The model is great for both beginners and experienced users.

Package contents

1. Parsun F5BMS boat motor
2. emergency stop check
3. emergency start cable
4. tool kit
5. operating instructions
6. packaging
